1. The Science: Low-Temperature Embrittlement & Crystal Structure

The most critical failure mode for metals at low temperatures is low-stress brittle fracture. The root cause is directly linked to the crystal structure:

1. Face-Centered Cubic (FCC) Structure: e.g., Austenite.

   • Metals with this structure retain high toughness (measured by impact energy) as the temperature decreases. There is no significant ductile-to-brittle transition temperature. They remain ductile and tough even at cryogenic temperatures.

2. Body-Centered Cubic (BCC) Structure: e.g., Ferrite, Martensite.

   • Metals with this structure have a defined Ductile-to-Brittle Transition Temperature (DBTT). When the service temperature falls below the DBTT, the material's impact energy plummets, and it fractures in a brittle, catastrophic manner with little or no plastic deformation.

2. Detailed Analysis by Stainless Steel Type

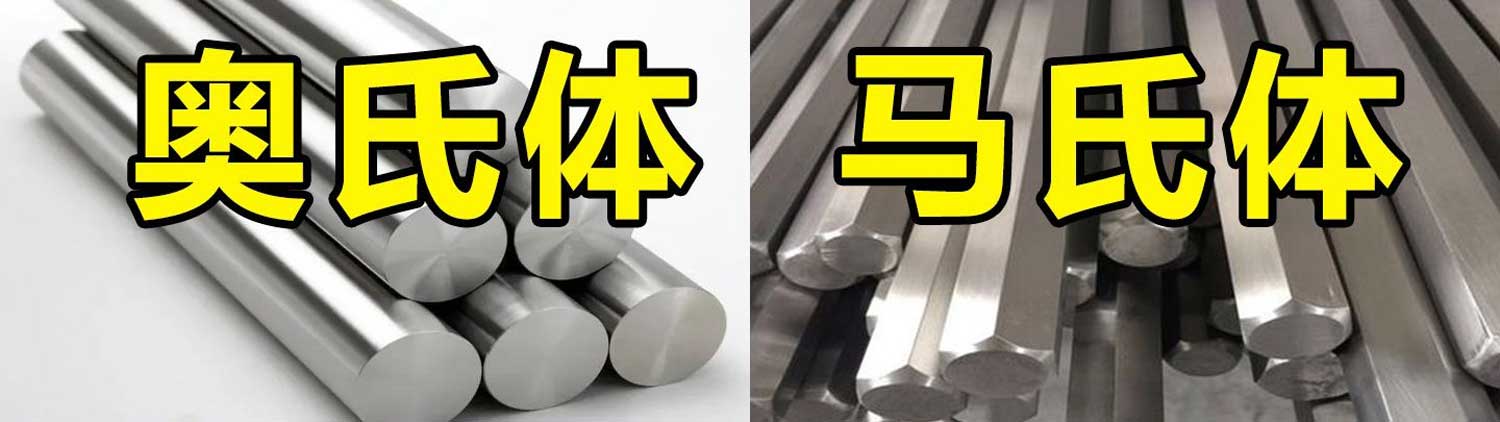

Austenitic Stainless Steels - The Best Performance

Why are they excellent?
Their austenitic phase is FCC. Alloying elements like Nickel (Ni) stabilize this structure, preventing transformation down to very low temperatures.

Common Grades & Performance:

Special Notes:

• Magnetism: Stable austenitic steels are generally non-magnetic. Cold working may induce a slight magnetic response due to strain-induced martensite, but this does not significantly impair low-temperature mechanical properties.

• Low-Temperature Phase Transformation: While some metastable austenitic steels can transform to martensite at cryogenic temperatures, the process is typically too slow to impact industrial applications.

Ferritic Stainless Steels - Not Suitable

Why are they poor?
Their ferritic matrix is BCC. They exhibit a distinct and often high DBTT. Their impact toughness drops drastically as temperature decreases.

Typical Grades:

• 430

• 443

Recommendation:
Absolutely prohibited for any low-temperature structural or pressurized components. They may only be used for non-critical, non-load-bearing applications like aesthetic trim.

Martensitic Stainless Steels - Not Suitable

Why are they poor?
Their martensitic matrix is a body-centered tetragonal (BCT) structure, which behaves similarly to BCC in terms of brittleness. Their DBTT is typically above 0°C (32°F), making them extremely brittle at sub-zero temperatures.

Typical Grades:

• 410

• 420

Recommendation:
Strictly forbidden for any low-temperature application.

Duplex Stainless Steels - Limited Application

Duplex steels have a mixed microstructure of roughly 50% Austenite (FCC) and 50% Ferrite (BCC).

• Advantage: Higher strength than austenitic steels.

• Disadvantage: The presence of a large fraction of BCC Ferrite means their low-temperature toughness is inferior to fully austenitic grades. Their DBTT is typically in the range of -50°C to -80°C (-58°F to -112°F).

Typical Grades & Limits:

• 2205 (Duplex): Generally not recommended for temperatures below -50°C (-58°F).

• 2507 (Super Duplex): Has an even higher usable temperature limit.

Recommendation:
Can be used in moderately low-temperature applications (e.g., above -50°C) after careful assessment, but cannot replace austenitic steels for deep cryogenic service.

3. Comparison Summary Table

4. Key Points for Material Selection & Design

1. Default to Austenitic: For cryogenic media like liquid nitrogen, oxygen, or LNG, 304L and 316L are the standard, preferred choices.

2. Material Condition: Ensure the material is in the solution-annealed condition for a homogeneous and stable austenitic structure.

3. Follow Standards: Adhere to relevant pressure vessel and piping codes (e.g., ASME BPVC, EN), which have strict requirements for material selection and impact testing for low-temperature service.

4. Impact Testing is Mandatory: Even for austenitic steels, Charpy V-Notch impact testing at the Minimum Design Temperature is typically required for pressure equipment to verify adequate impact energy.
