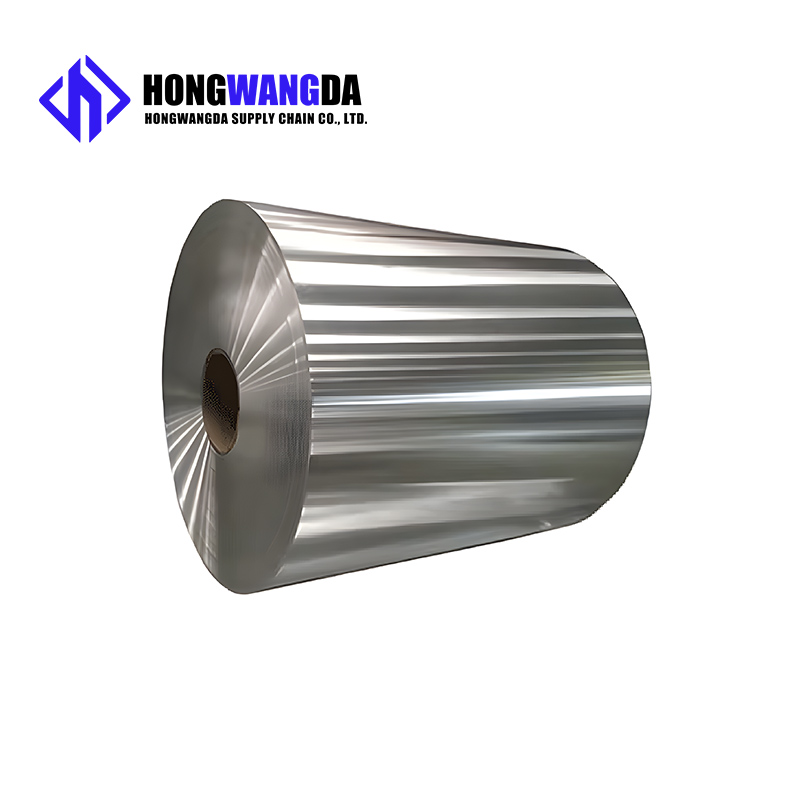

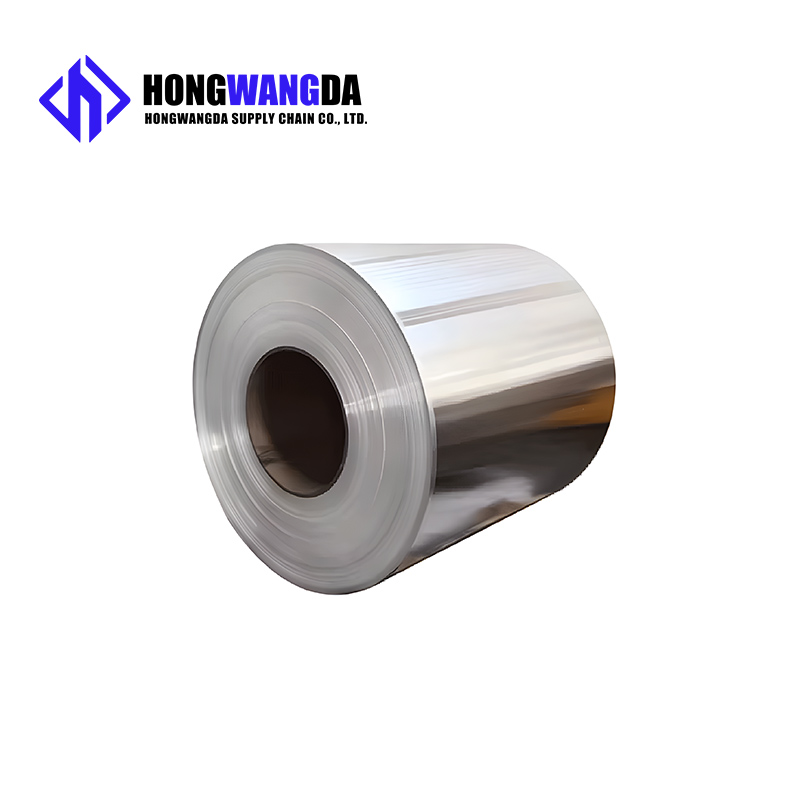

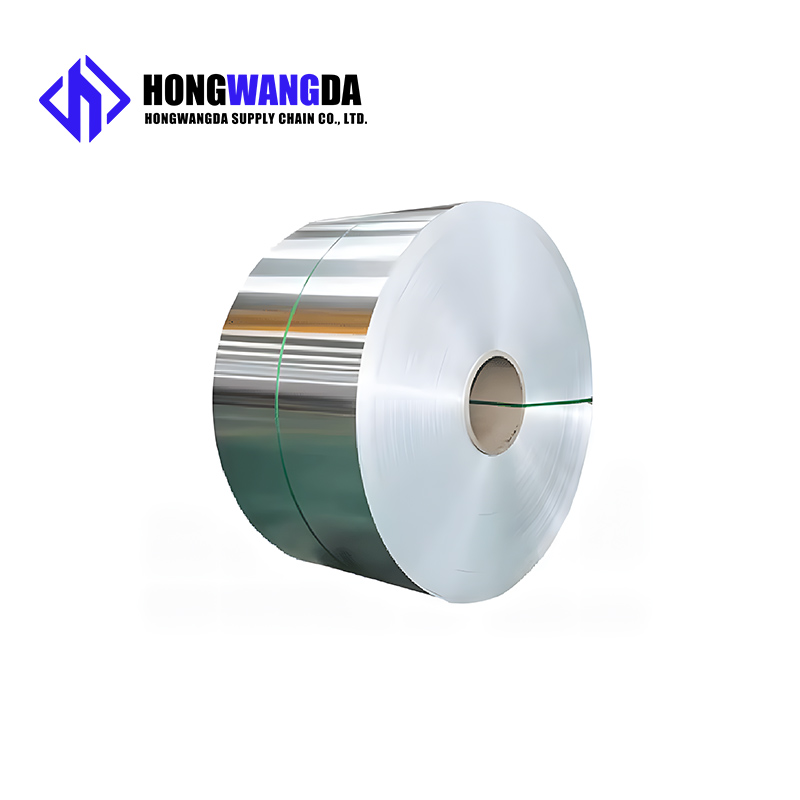

Aluminum Coil

Excellent Strength-to-Weight Ratio: Achieve lightweight design without compromising structural integrity.
Superior Corrosion Resistance: Extends product lifespan and reduces maintenance costs.
Excellent Formability & Weldability: Meets complex processing requirements and enhances production efficiency.
High Surface Quality: Multiple surface treatment options available for both aesthetic and functional needs.
Eco-Friendly & Recyclable: 100% recyclable material, aligning with green manufacturing principles.

Phone：+86 18954208811

Email：info@hwdsteel.com

WhatsApp：+86 18954208811

Add：Keda Xunfei Weilaigang Building, No. 1 Jiangshan South Road, Huangdao District, Qingdao City, Shandong Province

Inquire Now

◉ PRODUCT SPECIFICATION

1. Select Alloy & Temper

This is the foundation for defining product performance.

Alloy Series	Recommended Grades	Key Characteristics	Typical Applications
1000 Series (Pure Al)	1060, 1100	Excellent corrosion resistance, conductivity, formability	Chemical linings, reflectors, electrical components, decorative trim
3000 Series (Al-Mn)	3003, 3005	Most Common Series, good strength, corrosion resistance, formability	Ceilings & walls, cookware, blinds, HVAC heat exchangers
5000 Series (Al-Mg)	5052, 5083	High Strength, Excellent Marine Corrosion Resistance, good weldability	Shipbuilding, automotive body panels, tankers, engineering structures
6000 Series (Al-Mg-Si)	6061, 6082	High Structural Strength, heat-treatable, good all-around performance	Truck frames, robotic arms, rail transit, aerospace components

Temper Guide:

O (Annealed): Softest state, optimal ductility for deep drawing.
HX4 (e.g., H14/H24): Half-hard, balances strength with formability. Versatile.
HX8 (e.g., H18): Full-hard, high strength for applications requiring minimal bending.
T6 (Solution Heat-Treated & Aged): Highest strength via heat treatment for critical structures.

2. Dimensions & Tolerances

We provide precise, custom slitting services.

Thickness
- Range: 0.1mm - 10.0mm
- Tolerance: Strict adherence to ASTM/GB standards, ensuring high precision (±0.02mm~±0.05mm).
Width
- Range: 100mm - 2500mm (Custom ultra-wide available)
- Tolerance: Precision slitting within ±0.5mm.
Inner Diameter (I.D.)
- Standard Options: 405mm (16"), 505mm (20"), 508mm (20"), 610mm (24")
- Custom Available: Tailored to your uncoiling equipment.
Coil Weight & Outer Diameter (O.D.)
- Max. Coil Weight: Up to 25 tons, reducing joints and boosting your efficiency.

3. Mechanical Properties (Typical Values)

Alloy/Temper	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
1060 O	60 - 95	15 - 25	≥ 25
3003 H14	140 - 180	115 - 150	≥ 8
5052 H32	230 - 280	195 - 240	≥ 7
6061 T6	≥ 290	≥ 240	≥ 8

Note: Values are typical. Specifics subject to 3rd party test reports.

◉ Surfcae selection

SURFACE	CHARACTERISTIC	SUMMARY OF MANUFACTURING METHOD	APPLICATION
NO.1	Silvery white	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.1	lackluster	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.2D	Silvery white	After cold rolling, heat treatment and pickling are carried out	General material, deep material
NO.2B	Gloss is stronger than No.2D	After No.2D treatment, the final light cold rolling is carried out through the polishing roller	The general material
BA	As bright as a sixpence	No standard, but usually a bright annealed surface with high reflectivity.	Building materials, kitchen utensils
NO.3	Rough lapping	Grind with 100~200# (unit) strop tape	Building materials, kitchen utensils
NO.4	Intermediate grinding	Polished surface obtained by grinding with 150~180# strop abrasive tape	Building materials, kitchen utensils
NO.240	Fine lapping	Grinding with 240# strop abrasive tape	kitchenware
NO.320	Very fine grinding	Grinding was carried out with 320# strop abrasive tape	kitchenware
NO.400	The luster is close to BA	Use 400# polishing wheel to grind	General timber, building timber, kitchen appliances
HL	Hairline grinding	Suitable particle material for hair stripe grinding (150~240#) with many grains	Building, construction material
NO.7	It's close to mirror grinding	Use a 600# rotary polishing wheel to grind	For art or decoration
NO.8	Mirror ultrafinish	The mirror is ground with a polishing wheel	Reflector, for decoration
