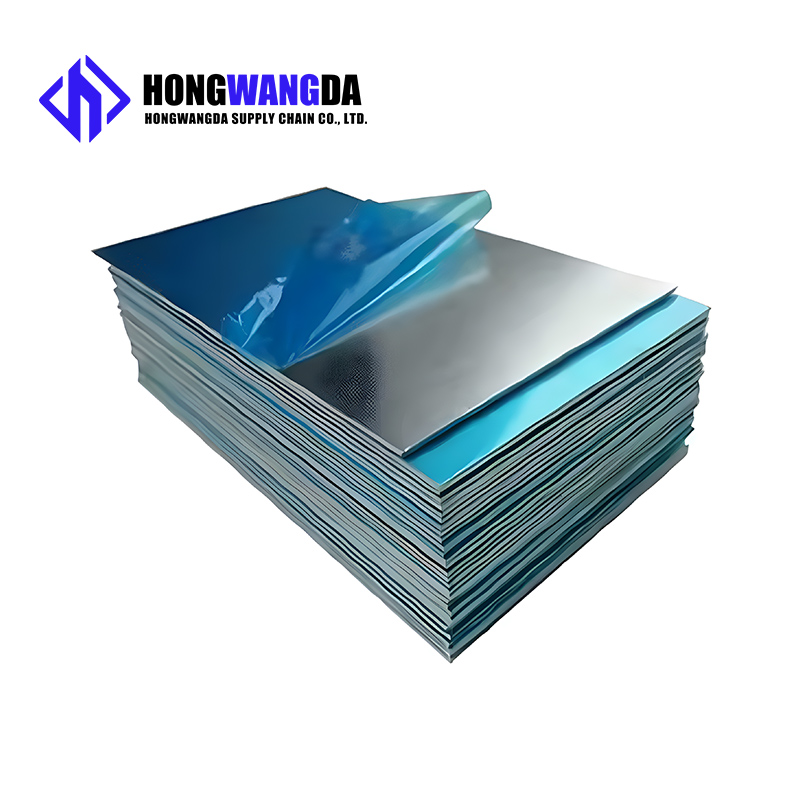

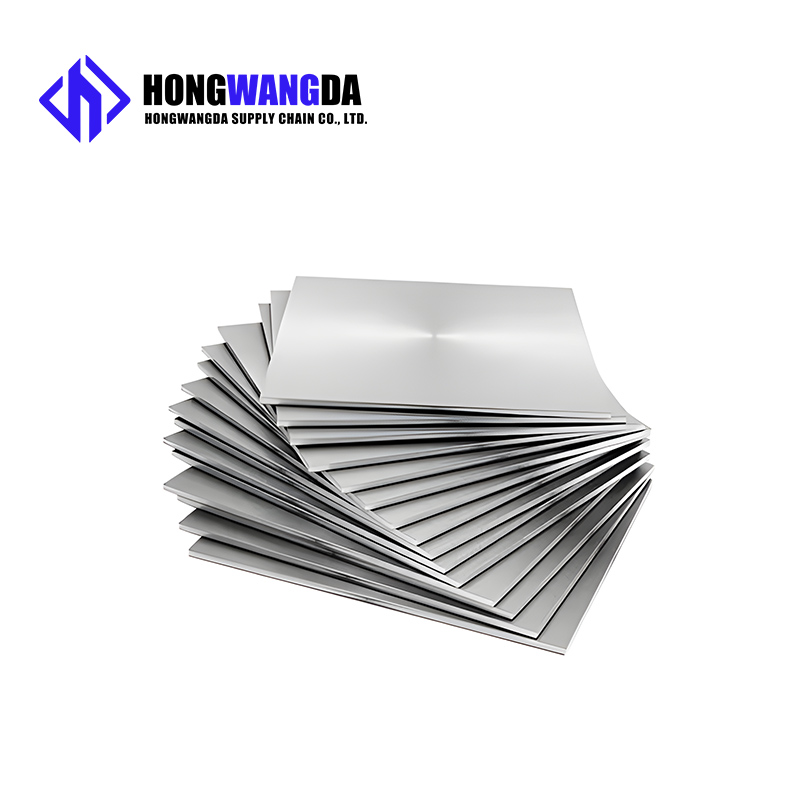

Aluminum plate
Superior Flatness & Stability: Precision-milled for exceptional surface consistency, ideal for precision machining and structural bases.
High Load-Bearing Capacity: Excellent strength-to-weight ratio for demanding structural applications.
Outstanding Machinability: Clean cutting and easy processing, reducing tool wear and production time.
Custom Heat Treatment: Available in various tempers to meet specific mechanical property requirements.
Strict Quality Control: Every plate is ultrasonically tested to ensure internal integrity and consistency.
Phone：+86 18954208811
Email：info@hwdsteel.com
WhatsApp：+86 18954208811
Add：Keda Xunfei Weilaigang Building, No. 1 Jiangshan South Road, Huangdao District, Qingdao City, Shandong Province
Inquire Now

◉ PRODUCT SPECIFICATION

1. Alloy & Temper Selection


Alloy Series

Key Grades

Primary Characteristics

Ideal Applications

5000 Series

5083, 5454

Marine-grade corrosion resistance, excellent weldability, high fatigue strength

Ship hulls, offshore platforms, pressure vessels, marine structures

6000 Series

6061, 6082

Best all-around structural alloy, heat-treatable, good strength & corrosion resistance

Machine frames, aerospace components, automotive chassis, railcars

2000 Series

2024, 2014

High strength-to-weight ratio, excellent machinability (aerospace grade)

Aircraft structures, military applications, high-stress components

7000 Series

7075, 7050

Ultra-high strength, superior stress corrosion resistance

Aerospace frames, defense applications, high-performance automotive

Temper Designations:

  • T651/T6511: Solution heat-treated, stress-relieved, and stretched for maximum stability and minimal machining distortion

  • O (Annealed): Soft state for severe forming operations

  • H112: As-fabricated with specified mechanical properties

  • T6: Solution heat-treated and artificially aged for peak strength

2. Dimensional Specifications


  • Thickness Range:

    • Standard: 6mm - 150mm

    • Heavy Plate: 150mm - 400mm (custom orders)

    • Tolerance: Meets ASTM B209/EN 485 standards

  • Width Range:

    • 1000mm - 2500mm (standard)

    • Up to 3500mm (custom extruded)

  • Length Range:

    • 2000mm - 8000mm (standard)

    • Custom lengths available

3. Standard Mechanical Properties


Alloy/Temper

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)

Hardness (HB)

5083 H112

275-350

125-200

12-20

70-85

6061 T651

310-350

275-310

10-17

95-100

2024 T351

425-470

275-325

12-20

120-135

7075 T651

510-560

430-480

9-13

150-160

Note: Values represent typical ranges. Certified test reports available upon request.


◉ Surfcae selection

1750928966796787595606433792 拷贝
SURFACE CHARACTERISTIC SUMMARY OF MANUFACTURING METHOD APPLICATION
NO.1 Silvery white Hot rolled to specified thickness Do not need to have a glossy surface use
lackluster
NO.2D Silvery white After cold rolling, heat treatment and pickling are carried out General material, deep material
NO.2B Gloss is stronger than No.2D After No.2D treatment, the final light cold rolling is carried out through the polishing roller The general material
BA As bright as a sixpence No standard, but usually a bright annealed surface with high reflectivity. Building materials, kitchen utensils
NO.3 Rough lapping Grind with 100~200# (unit) strop tape Building materials, kitchen utensils
NO.4 Intermediate grinding Polished surface obtained by grinding with 150~180# strop abrasive tape Building materials, kitchen utensils
NO.240 Fine lapping Grinding with 240# strop abrasive tape kitchenware
NO.320 Very fine grinding Grinding was carried out with 320# strop abrasive tape kitchenware
NO.400 The luster is close to BA Use 400# polishing wheel to grind General timber, building timber, kitchen appliances
HL Hairline grinding Suitable particle material for hair stripe grinding (150~240#) with many grains Building, construction material
NO.7 It's close to mirror grinding Use a 600# rotary polishing wheel to grind For art or decoration
NO.8 Mirror ultrafinish The mirror is ground with a polishing wheel Reflector, for decoration

◉ PRODUCTION AND WAREHOUSING

  • b4a89639cb8f0b9d61451985e57c487bd64e881055e25c-9rO4qL_fw1200 拷贝
  • b5d92d2e060c9a8ff3d662656f55ad778fece81222c642-QvUC7c
  • eff27ec437e651070ea5f6611fdc1750 拷贝
  • 8a8f2a84d128d40a576cfdadcd416fdd
